24 Position Board Edge Cutout Surface Mount Through Hole Right Angle USB Type C
usb female chassis conventional time, please pay attention to the daily maintenance and cleaning of the
internal components of the dust and debris, because in the use of TYPE C female chassis, in many cases
directly from the interface into too much dust and debris, once the accumulation of too much, which will
lead to usb Type c female chassis performance degradation, while the latter may also directly affect the
operation of the system circuit.
Type-C's Features
‧Acquired USB4 Gen 3 with TID & Thunderbolt 4 certificates
‧Bandwidth: Thunderbolt 4 certified connector supports 40Gbps bidirectional bandwidth and allows up to
five Thunderbolt devices connected
‧powered by a single connector.
‧Obtained USB-IF TID certification, meet EIA& MIL-STD standards
‧Reflow process compatible
‧Compliance with CE & FCC & MSDS & RoHS requirements
‧Customizable specification
Type-C's Specification
| Insulator | High temperature plastic 94V-0 |
| Contact current rating | 5 Amperes Max |
| Dielectric withstand voltage | AC 100V R.M.S |
| Contact resistance | 40 m maximum |
| Insulation resistance | 100 M minimum |
| Insertion force | 5 ~ 20N |
| Withdrawal force | 8 ~ 20N |
| Durability cyeles | 10,000 Cycles |
| Resistance | 5.1k/56k/Customized |
USB Type-C is widely used in laptops, tablets and cell phones due to its rich functionality (supporting data,
audio, video and charging at the same time), convenience (forward and reverse plugging), high speed data
transmission, bi-directional transmission of both data and power, small size and many other advantages,
and gradually extended to various accessories including TWS headphones, etc. There is a trend to gradually
unify the interface of electronic devices.
KKG electric CO.,LTD. is a company devotes itself to researching and manufacturing the components
such as switches, sockets and connectors. The Production of Products mainly used in computer products,
consumer electronics, electrical & electronics, industrial equipment & components......
So far,KKG set up own factory ,Processing factory,OEM factory and sales company in mainland China,
Taiwan(China) and Hong Kong .
During this time, the company had won many awards. Just like the industry first prize for the ISO9001
and the quality management.
1. OEM Manufacturing welcome: Our production capacity can be customized for any product.
2. Sample order can be accepted.
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products.
5. When you got the goods, test them, and give me a feedback.If you have any questions about the
problem, contact with us, we will offer the solve way for you
Q1.How could I get a sample?
A1.if you can not buy our product in your local area, we will ship a sample to you.You will be charged a
sample price plus all related shipping costs. Express delivery charge depends on the quantity of the
samples.
Q2.What is the price of shipping?
A2.Depending upon the port of delivery, prices varies.
Q3.Do your products come with waranty?
A3:Yes,we promise 1-3 year waranty according to different model.
For more information kindly contact as below :
Contact person: Miss Vicky Xie
Email:kkg@kkg
Tel: 0086-0769-82036866
Whatapp: 13377785035
|
|

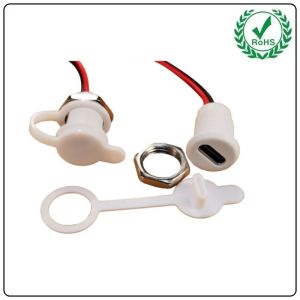

Custom Threaded Panel Mount USB Type C Female Connector Cable Assembly USB C Charging Socket Images
|
